DRILLING

Make: Ingersoll Rand Model: 1,200 CFM / 300 PSI Year: 2017 Air Compressor Location: Western Australia Learn More

Make: Ford Louisville Model: LTL9000 Year: 1990 Engine: Detroit Series 60 13 Litre @ 500 HP Transmission: Roadranger RT14715 Diff: 44,000 lbs Suspension: Hendrikson 44,000 kg Walking Beam - Spare Bonnet with Truck Truck Location: Queensland, Australia Learn More

Type: HWT Length: 3 Metres Quantity: 17 Condition: Excellent with 80% - Threads always capped and greased - Ready to go Drill Pipe Location: Victoria, Australia Learn More

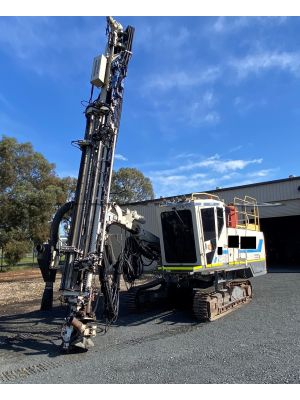

Make: Furukawa Model: HCE 1500 EDII Year: 2008 Hours: 9,615 Drifter Model: D751RP Drifter Hours: 4,546 Engine: Caterpillar CAT C9 Onboard Air Compressor: Airman - Main Pump was replaced under warranty in May 2015 Track Mounted Drill Rig Location: Australia Learn More

Make: Mole Pioneer Model: P400S 450HQ Hours: 2,940 Engine: Perkins 119 kW Diesel - Onboard W1122 Bean Pump Rotation Head Model: KL400 Top Drive Stroke: 1,200 mm Drilling Angle: 90 degrees vertical to 45 degrees horizontal Drilling Depth Capacity B Size: 900 metres N Size: 700 metres H Size: 450 metres P Size: 275 metres Truck Make: Ford Model: Cargo Series KM's: 25,372 Year: 1985 Type: 6x4 Condition: Good *For more information, please contact us* Mole Truck Mounted Drill Rig Location: Queensland, Australia Learn More

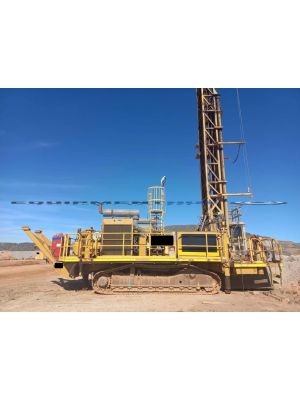

Make: Caterpillar Model: MD6240 Year: 2012 Hours: 30,000 Engine Number: QST30-327139640 Serial Number: 2U65X75 Onboard Air Compressor: Sullair 1,500 CFM / 350 PSI - New GPS Fitted and included in price Track Mounted Drill Rig Location: Western Australia Learn More

Capacity: 3,000 Litre - 4x Jack Legs for levelling - Aluminum - Steel Framed Mud Tank Location: Queensland, Australia Learn More

Make: American Type: 5x6 - New Liners, Pistons and Parts to change to 4 3/4" Inch Mud Pump Parts Location: Queensland, Australia Learn More

Make: Hydrapower - Rams have been resealed but never used Footclamps Location: Queensland, Australia Learn More

Vacuum Unit Make: Vermeer Model: V250 Vac/NDD Year: 2012 Hours: 1,540 - 1,000 Litre Spoil Tank - 400 Litre Saddle Water Tanks - 3,500 PSI Water Jet - Civil Spec for Vac Unit Truck Make: Isuzu Model: FRR 550 Year: 2010 KM's: 281,000 - Toolboxes and Dropside with Deck Storage - New South Wales Registration - Civil Spec for Truck Truck Mounted Vacuum/NDD Unit Location: Queensland, Australia Learn More

Includes; - Kitchen - Lunch Room / Work Station Room - Generator - 2x Toilets Tri-Axle Van Location: Australia Learn More

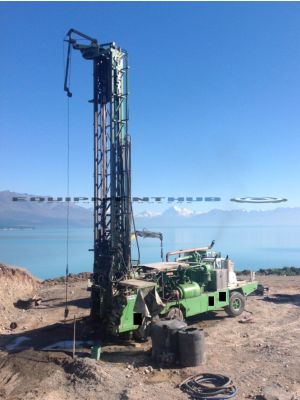

Drill Rig Make: Chicago Pneumatic Model: CP650 Year: 1981 Engine: Caterpillar CAT 3406 Onboard Air Compressor: GHH 825 CFM / 350 PSI Twin Screw Injection Pump: Comet APS 71 ltr/min @ 580 PSI Casing Driver: 612 Banger 6" Inch - 12" Inch Winch: 1/2" Inch 7,000 lbs Extendable Rod Handling Jib Hole Capacity: 6" Inch - 12" Inch 500 m 4 1/2" Inch Rods Capacity; Pull Down: 21,000 lbs Pull Back: 55,000 lbs 5 1/2" Inch Heavy Hoist Rams 73 ft/min Rapid Feed - 160 Pitch Chains Levelling Jacks; Front: 1 x 5" Inch x 48" Inch Stroke Rear: 2 x 5" Inch x 36" Inch Stroke Top Drive Rotary; 0-152 RPM - 76,000 lb Torque Twin Dynex Motors R/C Head - 7 m Travel Carrier Type: 6x4 Engine: Caterpillar CAT 3208 @ 210 HP Crane Carrier Carrier Mounted Water Well Drill Rig Location: New Zealand Learn More

Engine: Deutz 3FL2011 - Base Frame to support all components; engine, pump, hydraulics & fuel tanks, etc. - Fuel Tank Capacity: 60 Litres - Access Ladder to Control Platform - Paint, Two Pack Evolution Yellow Hydraulics; - Pump Group Bosch Rexroth - Main Pump A10VO45 Variable Displacement - Pilot Pump 5.5 cc Gear Pump - Maximum Circuit Pressure: 160 Bar - Hydraulic Oil Capacity: 100 Litres - Return Filter: 10 Micron - Hydraulic Oil Cooler and Fan Grout Pump; Make: Bredel Model: SPX 50 - Brevini BR100NC Hydraulic Motor - Slurry Flow Range: 0-85 lpm - Maximum Pressure: 15 Bar - Adjustable Speed Control Mixing Tank; Capacity: 1,400 Litres - Hydraulic Powered Agitator - Baffle Plates inside the tank - 3" Inch Outlet to Slurry Pump - Grid on tank top for cement dispersion during mixing - Sandblasted and painted with 2 pack paint Poly Reel; Capacity: 600 metres - 40 mm PN16 SDR11 Poly Pipe, Blue Stripe, 3.7 mm Wall - Fabricated construction approx. 2.1 metres diameter - Hydraulic Drive via reduction gearbox and chain + sprocket final drive - Adjustable Speed Control: 1.5-30 m/min Control Platform; - Mounted near mixing tank - Engine controls, start, stop, throttle, etc. - Hydraulic controls for agitator, slurry pump and hose reel Dimensions; Length: 4.65 m Width: 2.35 m Hight: 2.5 m Weight: 3,500 kg approx. Skid Mounted Grouting Unit Location: Australia Learn More

Q80K - Top Head Drive - 0-8,328 Nm (6,142 ft/lbf) in low gear - High Gear 3.04:1 Ratio - Low Gear 12.61:1 Ratio - Shift between High and Low Gear Ratios - 0-1,500 RPM Speed Range - Splined Floating Spindle - Independent Pressurized Lubrication System - Gearbox oil level inspection windows - Variable Speed Hydraulic Motor - Gear train for High/Low Ratio Q150K - Top Head Drive - 0-14,324 Nm (10,564 ft/lbf) in low gear - High Gear 3:1 Ratio - Low Gear 22.5:1 Ratio - Shift between High and Low Gear Ratios - 0-1,500 RPM Speed Range - Splined Floating Spindle - Independent Pressurized Lubrication System - Gearbox oil level inspection windows - Variable Speed Hydraulic Motor - Planetary Gear set for High/Low Ratio Q280K - Top Head Drive - 0-28,000 Nm (20,651 ft/lbf) in low gear - High Gear 3:1 Ratio - Low Gear 22.5:1 Ratio - Shift between High and Low Gear Ratios - 0-1,500 RPM Speed Range - Splined Floating Spindle - Independent Pressurized Lubrication System - Gearbox oil level inspection windows - Variable Speed Hydraulic Motor - Dual Planetary Gear set for High/Low Ratio Rotation Head Gearboxes Location: Australia Learn More

Model: WP500 Engine: Cummins QSB 4.5 @ 119 kW (160 HP) Fuel Tank Capacity: 200 Litres Estimated Weight: 2,890 kg (excluding trailer) - Base Frame to support engine, pumps, hydraulics and fuel tanks, etc. - Paint, Two Pack Evolution Yellow Hydraulics; - Pump Group Bosch Rexroth - A11VO95/A10VO85/16 - Maximum Circuit Pressure: 250 Bar - Hydraulic Oil Capacity: 400 Litres - Return Filter: 10 Micron - Hydraulic Oil Cooler and Fan Water Pumps; Make: FMC Model: L11-18SC Water Flow Range: 0-530 lpm (140 US/GPM) Maximum Water Pressure: 69 Bar (1,000 PSI) - Adjustable Water Pressure Relief Valve - Water Discharge Pressure Gauge - Surge Chambers on suction & discharge - Discharge Pulsation Dampener - Volvo fixed displacement Piston Drive Motors - Flex Drive Couplings - 2" Inch Water Delivery Hose x 10 metres long Control Panel; - Remote Pilot Hydraulic Control to attach at Rig Control Panel - Selectable Pump 1, 2 or both - Adjustable Friction Lock Control - Selectable Fine Speed Control on Pump 1 - Interconnecting Hoses 10 metres long Skid Mounted Mud Pump Location: Australia Learn More

Electrical Equipment - Panel Mount Display - 24 V 30/20 Replay - Suit Flowmeter Plug Hydraulic Equipment - Microfeed Rate Hydraulic Block - Check Cart Valve - Priority Cart Valve - 3 Way Directional Valve - Check 0.3 Bar Valve - Gear Flow Meter Penetration Rate Measuring System Sure Rate Location: Australia Learn More

Body Opening: 225 mm (8 3/4" Inch) OD - Fabricated High Tensile Steel Base Frame for increased strength and lighter unit weight - High Tensile Fabricated Lever Arms - Adjustable Connecting with Left & Right Hand Threads allowing accurate adjustment of jaw actuation - Cast Jaw Assemblies to suit most standard drill rod sizes - Light weight casting approx. 16 kg per jaw - Easily replaceable Gripper Inserts for NQ & HQ Jaw Sizes - RC Slips Table, Holders and Inserts to suit 3 1/2", 4" & 4 1/2" Rod Sizes - Changeable with Industry Standard Rod Clamps Rod Clamp Location: Australia Learn More

Model: FH3000 Engine: Cummins QSL Electronic @ 255 kW (342 HP) Pull Back: 280 kN (62,900 lbf) Limited Speed 244.8 kN (55,033 lbf) Full Speed Pull Down: 115 kN (25,853 lbf) Water Pump Options; - Standard FMC W1122BCD 140 lpm @ 1,000 psi - FMC L11-18SC 265 lpm @ 1,800 psi Depth Capacity; NQ Core: 2,030 m HQ Core: 1,377 m Open Hole 3 1/2" Inch Rods: 900 m RC 4 1/2" Inch: 600 m (Nominal) Traverse Speed; Maximum Speed: 55.5 m/min (182 ft/min) Rotation Head; - Top Head Drive - Maximum Torque: 14,324 Nm (10,564 ft/lb) in low gear - 0-1,500 RPM Speed Range - 100% Theoretical Main Winch; - Maximum Pull: 226 kN (50,806 lbf) - Maximum Speed: 100 m/min (328 ft/min) - 2x Multi Disc Brake Units - Fail Safe Spring Activated - Hydraulic Pressure Release - 9 Metre Rod Pull Capacity Wireline Winch; - Maximum Pull: 27 kN (6,069 lbf) - Rope Capacity: 3,000 Metres x 8 mm Rope - Maximum Speed: 450 m/min (1,476 ft/min) New Build Multipurpose Track / Truck Mounted Drill Rig Location: Australia Learn More

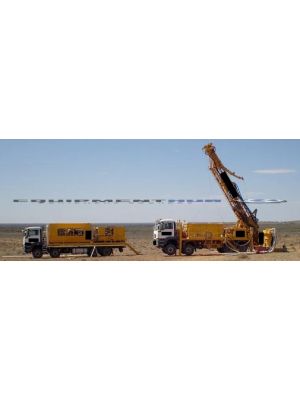

Model: FH2000 Engine: Caterpillar CAT C7.1 Electronic @ 205 kW (275 HP) Pull Back: 280 kN (62,900 lbf) Limited Speed 244.8 kN (55,033 lbf) Full Speed Pull Down: 115 kN (25,853 lbf) Water Pump Options; - Standard FMC W1122BCD 140 lpm @ 1,000 psi - FMC L11-18SC 265 lpm @ 1,800 psi Depth Capacity; NQ Core: 2,030 m HQ Core: 1,377 m Open Hole 3 1/2" Inch Rods: 900 m RC 4 1/2" Inch: 600 m (Nominal) Traverse Speed; Up: 50 m/min (164 ft/min) Down: 39 m/min (128 ft/min) Rotation Head; - Top Head Drive - Maximum Torque: 14,324 Nm (10,564 ft/lb) in low gear - 0-1,500 RPM Speed Range - Bosch Rexroth A6VM160 Variable Displacement Motor - High Gear 3:1 & Low Gear 19.57:1 ratios - Adjustable Rotation Torque Control - Infinitely Variable Rotation Speed Control - Floating Spindle 3 1/2" Inch API IF Pin Thread - Pressure Lube Bearings and Gears with filtered and cooled lubrication oil system Main Winch; - Maximum Pull: 156 kN (35,048 lbf) - 120 m/min (394 ft/min) - Mast Top Mounted - Electronic Winch Travel - Fail to safe - 28 mm Main Winch Rope - Safety Factor 3.35:1 (exceeds BS/EN791) - 1x Bosch Rexroth A6VM160 Variable Displacement Motors - 1x Brevini Planetary Reduction Gear Boxes - 1x Multi Disc Brake Units - Fail Safe Spring Activated - Hydraulic Pressure Release Wireline Winch; - Mast Mounted - Maximum Pull: 25 kN (5,617 lbf) - Rope Capacity: 2,100 Metres x 8 mm Rope - Adjustable Position Wireline Spooler - Maximum Speed: 450 m/min (1,476 ft/min) - Adjustable Pull Limiter - Safety Stop System - Wireline Depth Counter as an option New Build Multipurpose Track / Truck Mounted Drill Rig Location: Australia Learn More

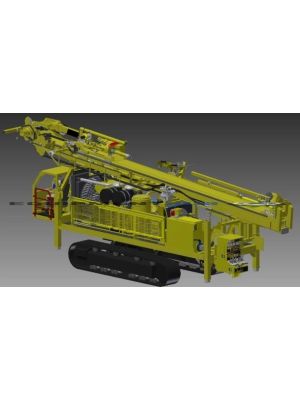

Model: FH1300 Engine: Caterpillar CAT C7.1 Electronic @ 187 kW (250 HP) Pull Back: 115 kN (25,853 lbf) Actual Pull Down: 70 kN (15,736 lbf) Water Pump Options; - Standard FMC W1122BCD 140 lpm @ 1,000 psi - FMC L11-18SC 265 lpm @ 1,800 psi Depth Capacity; NQ Core: 1,300 m HQ Core: 885 m Open Hole 3 1/2" Inch Rods: 380 m RC 4 1/2" Inch: 220 m (Nominal) Traverse Speed; Up: 60 m/min (196.8 ft/min) Down: 56 m/min (183.7 ft/min) Rotation Head; - Top Head Drive - Maximum Torque: 8,087 Nm (6,111 ft/lb) in low gear - 0-1,500 RPM Speed Range - Two Speed Gearbox - High Gear 3.04:1 & Low Gear 12.61:1 ratios - Variable Displacement 160cc Hydraulic Motor - Adjustable Rotation Torque Control - Infinitely Variable Rotation Speed Control - Floating Spindle 3 1/2" Inch API IF Pin Thread - Pressure Lube System with Cooler and Filter Main Winch; - Maximum Pull: 100 kN (10,000 lbf) - 120 m/min (393 ft/min) - Mast Top Mounted - Electronic Winch Travel - Fail to safe - Main Winch Rope - Safety Factor to Meet BS/EN791 - Planetary Reduction Gear Box & Brake - Variable Displacement Hydraulic Motor Drive Wireline Winch; - Deck Mounted - Maximum Pull: 15 kN (3,372 lbf) - Rope Capacity: 1,400 Metres x 6 mm Rope - Adjustable Position Wireline Spooler - Maximum Speed: 450 m/min (1,476 ft/min) - Adjustable Pull Limiter - Safety Stop System - Wireline Depth Counter as an option New Build Multipurpose Track / Truck Mounted Drill Rig Location: Australia Learn More
