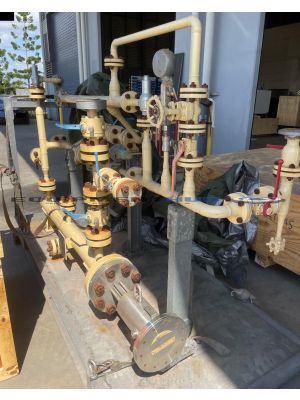

Make: AFHTechFLOW Package Type: Gas Heating & Pressure Regulating Skid Application: Fuel gas conditioning for gas engine / generator Year: October 2014 Fluid: Natural Gas / Fuel Gas Typical End Use: GE Jenbacher Gas Generator Fuel Gas Train Electrical Supply: 415 V, 3-phase, 50 Hz Heater Power Load: ~11 kW Gas Inlet Connection: Flanged pipeline inlet Gas Outlet Connection: Flanged connection to engine gas train Drains: Heater vessel drain Relief: PSVs vented to atmosphere Earthing: Dedicated skid earth lug Nominal Gas Flow: 330 Nm³/hr Maximum Flow Rate: 330 Nm³/hr Inlet Pressure (Operating): 35 – 90 barg Inlet Pressure (Design / MAOP): 102 barg (upstream of regulator PRV2301) Outlet Pressure (Operating): 4 barg Inlet Temperature: 2 – 60 °C Outlet Temperature: 0 – 40 °C Design Temperature Range: -15 to +60 °C Gas Quality Assumption: Pipeline Quality Natural Gas Gas Heating System; - Electric gas heater, 10.8 kW - Explosion-protected heater suitable for Zone 1 - Carbon steel pressure vessel heater housing - 100 NB, Class 600 - Designed to AS 1210 PT100 RTD temperature elements; - Element sheath over-temperature protection - Heater outlet temperature control Thyristor-controlled heater system; - Control panel supplied separately for non-hazardous area installation - Heater pressure safety relief valve Pressure Control & Safety; - Primary pressure regulator (carbon steel body) - Over-pressure shut-off valve with fracture disk - Pressure safety relief valve (PSV) - Pressure gauges with block and bleed valves - Manual isolation ball valves (Class 800) Gas Filtration & Separation; - Cyclone separator for liquid droplet removal - Particle filter rated >3 µm - Designed to prevent condensate and solids entering engine gas train Fuel Gas Conditioning Skid Location: Queensland, Australia Learn More

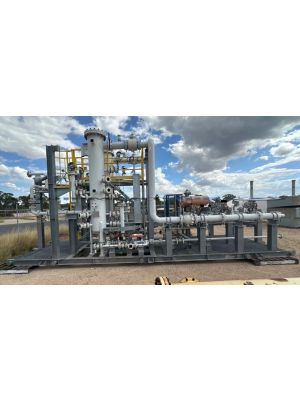

Make: Compressor Systems Australia Pty Ltd (CSI) Year: 2012 Vessel Type: Vertical Gas Coalescer Vessel Designed Service: Coal Seam Gas (CSG) Design Code: AS 1210:2010 Hazard Level: B (AS 4343) Registered Design Number: Q26409 - Does NOT INCLUDE Control System Module or Wiring Mechanical (Each Vessel); Internal Volume: 460 L Orientation: Vertical Shell Material: AS1548 PT460NR Head Material: AS1548 PT460 Corrosion Allowance: 3 mm PWHT: Nil Weight; Empty: ~550 kg Full: ~850 kg Pressure & Temperature; Design Pressure: –101.3 kPa to 1,000 kPa Maximum Operating Pressure: 930 kPa Hydrostatic Test Pressure: 1,500 kPa Design Temperature: –10 °C to + 85 °C MDMT: –31 °C Maximum Operating Temperature: 50 °C Internals; - Replaceable coalescing filter elements (micron rating TBC) - Bottom liquid sump with drain connection - Top removable head for element access Total Installed Coalescing Volume: ~920 L Pressure Regulation; Make: Fisher (Emerson) Model: Big Joe® Type 630 Function: Downstream pressure control following coalescing Maximum Differential Pressure: 250 PSIG Casing Pressure: As per manufacturer nameplate Instrumentation; Level / Condensate Monitoring: Rosemount Transmitter Tag: BB76-LIT-700034B - Instrumentation associated with condensate collection and drain system - High-pressure rated instrument chamber Configuration & Key Features; - Parallel twin-vessel (A/B) arrangement - Individual isolation valves per coalescer - Common inlet and outlet headers Designed for: - High-availability CSG operations - Online maintenance - Reduced pressure drop - Protection of downstream compression, metering, and pipelines Asset Classification; Twin Coal Seam Gas (CSG) Coalescer Vessel and Pressure Regulation Skid AS 1210 Pressure Equipment – Hazard Level B Skid Assembly; Overall Dimensions (Approx.): 8.4 m (L) × 2.5 m (W) × 3.8 m (H) - Structural steel skid, gal with grated deck - Integrated access ladder and elevated maintenance platform - Painted carbon steel pipework - Outdoor-rated for field installation Twin Gas Coalescer & Pressure Regulation Skid Location: Queensland, Australia Learn More

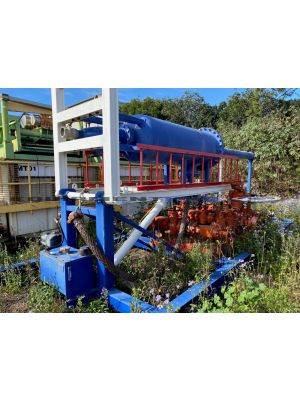

Make: WEI Model: 211.0216 Year: 2011 Power Installed / Max Load Capacity: Max 10 Bar Dimensions (L x W x H): 4 x 1.3 x 2 H M Weight: 2,075 kg Poor Boy Degasser Location: Queensland, Australia Learn More
