DRILLING

Rig Make: Reichdrill Model: T-100 Year: 1992 Hours: 3,567 Engine: Cummins (700 HP) Pull Up: 50 Tonne Pull Down: 20 Tonne Capacity: 1,200 m - Hydraulic Pipe Handler attached to Mast - 2 Speed Head - 140 RPM Max. Rotation - 132,000 lb Torque - Manual Slips w/ Dies to suit 2 3/8" Inch, 2 7/8" Inch & 3 1/2" Inch Pipe - Has sat for 3 years, need some refurbishment - Heavy Duty, Deep Water Rig Carrier Make: Custom Miles: 17,064 Engine: Cummins Crane Carrier Mounted Drill Rig Location: Queensland, Australia Learn More

Includes; - 7x NMLC Bit and Reamers - 3x NMLC Bits - 2x NMLC TC Core Bit - 1x HMLC Used Bit and Reamer - 1x HMLC New S15 Core Bit - 1x HMLC New Reamer - 1x HMLC Used Core Bit - 1x Tri Cone 2 15/16" Inch - 1x Tri Cone 3 7/8" Inch - 1x HQ3 Bit Reamer Fordia S11/14 - 5x HQ3 Used IMP Bits - 2x HQ3 TC Core Bits - 1x PQ3 Near New IMP Core Bit - 1x C4 IMP Bit and Reamer - 1x NW IMP Shoe Bit - 1x NW TC Shoe Bit - 1x HQ Rod TC Shoe Bit - 2x NQ3 Near New IMP Core Bits - 3x NQ Reamers - 1x NQ Rod Reamer - 1x NQ New IMP Core Bit Hayden S14/15 - 1x HQ New Reamer - 1x HQ Near New Reamer - 1x New 3 7/8" Inch Drag Bit - 2x Near New 4 1/2" Inch Drag Bit - 1x NMLC New Hard Core S6 - 1x NMLC New Reamer - 1x NQ3 Hard Core S15 - 9x 2 Metre Used RC Rods - 1x Used 1.5 Metre RC Rod with Bit - 4x Worn Augers - 1x Used 4 1/2" Inch Bit - 1x New 4 1/2" Inch Bit - 1x 6 1/2" Inch Drag Bit - 1x 100 mm Tube Adapter - 1x 75 mm Tube Adapter - 2x 50 mm Tube Adapter Plus 50 mm Piston Sampler Drilling Consumables Package Location: Queensland, Australia Learn More

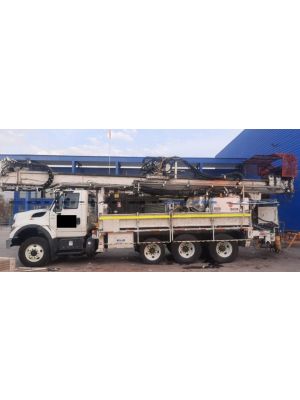

Rig Make: EDM Model: 2000 Year: 2010 (2x) & 2012 Engine: Cummins QSM-11 Tier 3 Diesel Pullback: 40,000 Main Winch: 40,000 Max. Tophead Torque: 9,000 (800 Torque @ 1,500 RPM) - Set Up for Exploration Drilling (5-150 RPM Tophead in Low Gear) - Core Drilling Applications (150-1,500 RPM Tophead in High Gear) - No Air Compressor - No Mud Pump - FMC (Bean) Water Pump (140 l/min or 35 GPM) - Sliding Angle Mast (Up to 45 Degrees with 2,000 mm Mast Dump) - High Speed Wireline Winch for Coring - Hydraulic Rod Break Out - Rod Spinner with 11,000 Breakout Torque Quantity: 3 Approx. Drill Depths; Dual Tube RC Pipe: 350 m BQ Coring Pipe: 2,800 m NQ Coring Pipe: 2,000 m HQ Coring Pipe: 1,500 m PQ Coring Pipe: 1,100 m Rig Truck Make: International Model: 7601 (2010) / 7500 (2010) / 7600 (2012) Year: 2019 (2x) & 2012 Type: 8x4 Truck Mounted Drill Rig Location: Chile Learn More

Make: Wacker Neuson Model: TH412 Year: 2020 Hours: Less than 500 Engine: Yanmar 3TNV80FT @ 25HP Chassis Operating Pressure: 5,510 PSI / 380 bar Hydraulic Operating Pressure: 3,190 PSI / 220 bar Payload Max: 1,250 kg Payload Lift Max: 1,250 kg Lift Bucket Swivel: 4,537 mm Dimensions Length: 3,944 mm (2,991 mm w/out Bucket) Width: 1,564 mm Height: 5,280 mm (1,995 mm Just Cab) Weight: 2,750 kg - Forklift Attachment - Side Shift - Air Conditioning / Heating & Ventilation - ROPS / FOPS tested with VSG safety window on right side - Front, Roof & Rear Wipers - Heated Rear Window - Tilt Display - Sun Shade - Bottle Holder - Storage Net - LED Work Lights (1x Front & 1x On Cab Roof) Telehandler Location: Western Australia Learn More

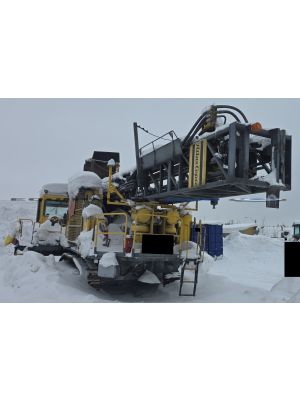

Make: Atlas Copco Model: DM45 HP Year: 2016 - Very Good Repair History Track Mounted Drill Rig Location: Canada Learn More

Type: Cavins 80 Tonne Model C (Chinese Copy) Slips: 2 3/8" Inch / 2 7/8" Inch / 3 1/2" Inch Condition: Brand New Tubing Spider Location: Victoria, Australia Learn More

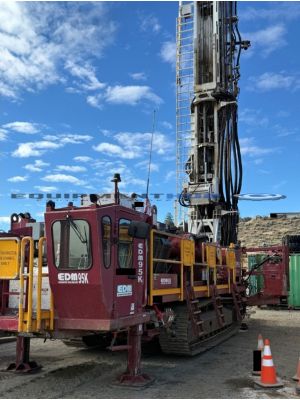

Make: Exploration Drill Masters EDM Model: 95K Year: 2018 Hours: 32,431 Drill Head Hours: 32,431 Compressor Hours: 32,431 Onboard Air Pack: Sullair 1,150 CFM / 500 PSI Air Compressor - Spare Parts available (can provide a detailed list with pricing) - EDM MK2 Core Rod Feeder (For additional $USD350,000) Track Mounted Drill Rig Location: United States of America Learn More

Make: Geoprobe Model: 7822DT Year: 2025 Hours: 319 - Geoprobe GH63 Hammer - Tethered and Wireless Remote - 4 Speed Head (4,000 ft-lbf @ 750 RPM) - Dual Winch Kit - 3' Mast Extension - 7" Inch Breakout Kit - H Feed Control / CPT Valve Kit - 140 lbs Auto Drop Hammer - Anvil Hanger - ADH Drive Cap AWJ, Pin Down - 5' Extruder with Moyno 3L6 - Helper Side - 53" Inch Toolbox - Open Storage Box - Drop Rack System w/ Rod Rack - Yoke Vise & Mounting Bracket - High Speed Water Swivel w/ Float - Float Sub NWJ Pin Assembly Track Mounted Drill Rig Location: United States of America Learn More

Make: Schramm Model: AD400AC Year: 2012 Hours: 20,600 Mast Top Head Travel: 4.7 m Mast Slide (Dump): 2.38 m Pullback Capacity: 13,607 kg (30,000 lb) - Rod Loader with 120 Metre Capacity of 3.5" Inch x 3 Metre RC Rods - FMC EO413 Water Injection Pump (82 LPM @ 48 Bar / Max Pressure: 103 Bar) - Rotary Head (0-146 RPM / 6,022 Nm (4,442 ft lb) - 800 Litre Fuel Tank - 1,000 Litre Water Tank Refurbishments; - All Hydraulic Pumps fully reconditioned (Only have less than 4,000 hours) - Compressor fully reconditioned (Less than 4,000 hours) - Complete Mast changed (Less than 4,000 hours) - Engine & Hydraulic Cooler (Less than 4,000 hours) - CAT 3406 Engine (10,600 hours) Fully Reconditioned & In stock, can arrange to fit to rig for extra - Sullair Air Compressor 20/12 H 1,150 CFM / 1,800 RPM to 1,350 CFM / 1,800 RPM (Max Discharge Pressure: 500 PSI @ 1,150 CFM & 350 PSI @ 1,350 CFM) - Fully Reconditioned (Little less than 8,000 hours) Track Mounted Drill Rig Location: New Caledonia Learn More

Model: MI1 Year: 2024 Hours: 0 (Never Used - In Storage) - Designed for Ute or Trailer Quantity: 2 Auger / SPT Drill Rig Location: Victoria, Australia Learn More

Make: AFHTechFLOW Package Type: Gas Heating & Pressure Regulating Skid Application: Fuel gas conditioning for gas engine / generator Year: October 2014 Fluid: Natural Gas / Fuel Gas Typical End Use: GE Jenbacher Gas Generator Fuel Gas Train Electrical Supply: 415 V, 3-phase, 50 Hz Heater Power Load: ~11 kW Gas Inlet Connection: Flanged pipeline inlet Gas Outlet Connection: Flanged connection to engine gas train Drains: Heater vessel drain Relief: PSVs vented to atmosphere Earthing: Dedicated skid earth lug Nominal Gas Flow: 330 Nm³/hr Maximum Flow Rate: 330 Nm³/hr Inlet Pressure (Operating): 35 – 90 barg Inlet Pressure (Design / MAOP): 102 barg (upstream of regulator PRV2301) Outlet Pressure (Operating): 4 barg Inlet Temperature: 2 – 60 °C Outlet Temperature: 0 – 40 °C Design Temperature Range: -15 to +60 °C Gas Quality Assumption: Pipeline Quality Natural Gas Gas Heating System; - Electric gas heater, 10.8 kW - Explosion-protected heater suitable for Zone 1 - Carbon steel pressure vessel heater housing - 100 NB, Class 600 - Designed to AS 1210 PT100 RTD temperature elements; - Element sheath over-temperature protection - Heater outlet temperature control Thyristor-controlled heater system; - Control panel supplied separately for non-hazardous area installation - Heater pressure safety relief valve Pressure Control & Safety; - Primary pressure regulator (carbon steel body) - Over-pressure shut-off valve with fracture disk - Pressure safety relief valve (PSV) - Pressure gauges with block and bleed valves - Manual isolation ball valves (Class 800) Gas Filtration & Separation; - Cyclone separator for liquid droplet removal - Particle filter rated >3 µm - Designed to prevent condensate and solids entering engine gas train Fuel Gas Conditioning Skid Location: Queensland, Australia Learn More

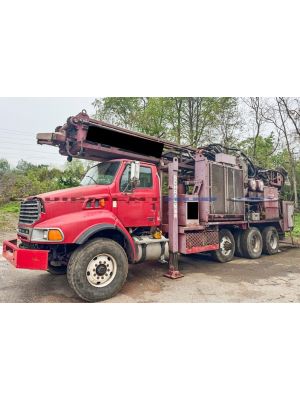

Rig Make: Schramm Model: T685WS Year: 2007 Hours: 1,624 Engine: MTU 12V-2000 Pullback: 74,000 lbs Air Compressor: Sullair 1,350 CFM / 350 PSI to 1,150 CFM / 500 PSI - Winch - Hammer Lubricator - Water Injection with Soap Pump - Set Up for 25x Lengths of 4 1/2" Inch Drill Pipe - 6" Inch & 8" Inch Hammers - Diverters - Subs - Wrenches - Tooling, etc. Truck Make: Sterling Model: LT9500 Miles: 1,729 Truck Mounted Drill Rig Location: United States of America Learn More

Make: Schramm Model: Matrix 4.5" Inch Part Number: 5001-4837 - Dual Wall Mineral Exploration Drilling Reverse Circulation - Crossover Connection for Pipe, Collars, Bits, Hammers, Stabilisers or Other Drilling Rig String Components Quantity: 3 Sub Adapter Location: United States of America Learn More

Make: Foremost Type: 4 1/2" Inch Connector Tube Pipe (CTP) - Reverse Circulation OD: 4 1/2" Inch x 3 1/4" Inch ID (Approx.): 3 1/4" Inch (without inner tubes) - Currently has "BAD" Steel Inner Tubes Installed (Inner Tubes can be removed by pressing; with PIN down and push out BOX end) Quantity: 140 Drill Pipe / Rod Location: United States of America Learn More

Suitable for Mineral Exploration with Ingersoll Rand T3W, Atlas Copco TH60 or Similar Includes; - Western Rubber 25CM-4 Top Swivel - Discharge Gooseneck - Side Air Inlet Swivel with Quill Reverse Circulation Drilling Swivels Package Location: United States of America Learn More

Make: Schramm Model: 5001-4836 Thread (Approx.): Matrix, Metzke, Remet - Marked 0512665 / 0450M-BAKRM-1 Special - Crossover Connector for Drill Pipe, Collars, Bits, Hammers, Stabilisers or Other Drilling Rig String Components Quantity: 3 Reverse Circulation Sub Adapter Location: United States of America Learn More

Rig Make: Schramm Model: T555 Year: 2004 Hours: 10,445 Engine: Caterpillar C15 565 HP Diesel Torque: 75,348 lbs @ 0-131 RPM Pullback: 40,000 lbs Pulldown: 30,000 lbs Air Compressor: Sullair 1,050 CFM / 350 PSI - Engine Preheater - FMC Bean Water Injection Pump - Pipe Trough - 300 Feet of Drill Pipe - Stabiliser - DTH Hammer - Table Bushings Truck Make: Sterling Year: 2004 Miles: 29,972 Engine: Mercedes Benz 450 HP Diesel Truck Mounted Drill Rig Location: United States of America Learn More

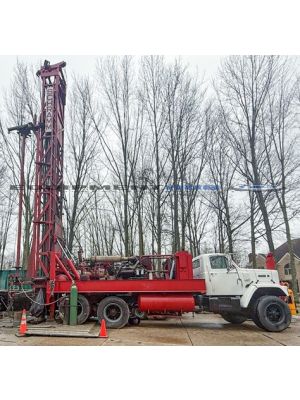

Rig Make: Schramm Model: T660 Rotadrill Year: 1984 Hours: 4,131 Air Compressor: GHH 750 CFM / 250 PSI @ 2,100 RPM Deck Engine: Detroit 8V92 Diesel Winch Pullback: 44,000 lbs - Caterpillar Water Injection System - Set Up as Top Head Air Rotary - 7 Rod Carousel - Hammer Oiler Truck Make: Brigadier Engine: Caterpillar 3208 Miles: 41,546 Transmission: 13 Speed GVW: 53,320 lbs FVW: 15,320 lbs RVW: 38,000 lbs Drill Pipe; - 4 1/2" Inch - 220' Foot Bottle Neck Truck Mounted Drill Rig Location: United States of America Learn More

Make: Sinocan Engineering Corp. Model: CSF500 Year: 2006 Engine: Detroit 60 Series 6063HV39 Performance at Max: 500 HP Input 165 SPM Skid Mounted Mud Pump Location: Western Australia Learn More

Make: Compressor Systems Australia Pty Ltd (CSI) Year: 2012 Vessel Type: Vertical Gas Coalescer Vessel Designed Service: Coal Seam Gas (CSG) Design Code: AS 1210:2010 Hazard Level: B (AS 4343) Registered Design Number: Q26409 - Does NOT INCLUDE Control System Module or Wiring Mechanical (Each Vessel); Internal Volume: 460 L Orientation: Vertical Shell Material: AS1548 PT460NR Head Material: AS1548 PT460 Corrosion Allowance: 3 mm PWHT: Nil Weight; Empty: ~550 kg Full: ~850 kg Pressure & Temperature; Design Pressure: –101.3 kPa to 1,000 kPa Maximum Operating Pressure: 930 kPa Hydrostatic Test Pressure: 1,500 kPa Design Temperature: –10 °C to + 85 °C MDMT: –31 °C Maximum Operating Temperature: 50 °C Internals; - Replaceable coalescing filter elements (micron rating TBC) - Bottom liquid sump with drain connection - Top removable head for element access Total Installed Coalescing Volume: ~920 L Pressure Regulation; Make: Fisher (Emerson) Model: Big Joe® Type 630 Function: Downstream pressure control following coalescing Maximum Differential Pressure: 250 PSIG Casing Pressure: As per manufacturer nameplate Instrumentation; Level / Condensate Monitoring: Rosemount Transmitter Tag: BB76-LIT-700034B - Instrumentation associated with condensate collection and drain system - High-pressure rated instrument chamber Configuration & Key Features; - Parallel twin-vessel (A/B) arrangement - Individual isolation valves per coalescer - Common inlet and outlet headers Designed for: - High-availability CSG operations - Online maintenance - Reduced pressure drop - Protection of downstream compression, metering, and pipelines Asset Classification; Twin Coal Seam Gas (CSG) Coalescer Vessel and Pressure Regulation Skid AS 1210 Pressure Equipment – Hazard Level B Skid Assembly; Overall Dimensions (Approx.): 8.4 m (L) × 2.5 m (W) × 3.8 m (H) - Structural steel skid, gal with grated deck - Integrated access ladder and elevated maintenance platform - Painted carbon steel pipework - Outdoor-rated for field installation Twin Gas Coalescer & Pressure Regulation Skid Location: Queensland, Australia Learn More
