DRILLING

Make: Home Made Model: 2,000 Ltr Mono Pump Deitz Power Unit Year: 2017 Single bowl cementing/grouting unit & the trailer it sits on. Good Condition Location: Queensland, Australia Learn More

Make: Lao Ma Si Te Model: LGF 500 Year: 2018 Rated input power 370kW（500HP） Rated strokes 165 SPM Stroke length 191mm（7.5″） Gear ratio 4.286∶1 Valve chamber size API 5# Liner ID 170mm Rated WP 9.3MPa Suction connection size 203mm（8″） Discharge connection size 4″flange 35MPa Pinion shaft diameter 139.7 mm（5 1/2″） Keys 31.75×31.75mm（1 1/4″×1 1/4″） Outline 3685×2709×1543mm（145″×106 5/8″×60 3/4″） weight 9770kg（21539Ib） Mud Pump Location: China Learn More

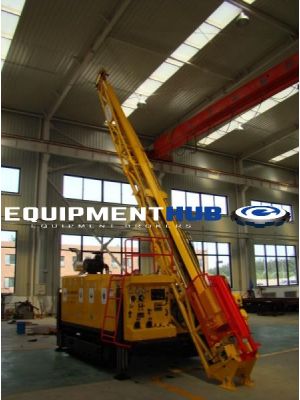

Make: Cortech Model: CSD1300L CSD1300L core drilling rig is specially designed for diamond core drilling. Track crawler mounted rig facilitates moving around with great convenience. Robust structure plus strong power supply ensures high penetration rate and outstanding reliability. Its full hydraulic concept includes virtually all operational functions that prevail on the latest models around the world. Specifications: Drilling Capacity Dia of Drill Rod BS,NS,HS,PS Drilling Depth 1,300m 1,000m 700m 400m Hydraulic System Pressure 26MPa Cooling Air Cooled Power System Model Cummins 6BTA5.9 –C180 Type Turbo Charged Power 132KW Engine RPM 2,500rpm Drill Head Max Torque 4,257Nm Max Rotation ,RPM 1,182rpm Feed Stroke 3.5m Max Inside Diameter 117mm Max Pull / Max Push 127KN/ 50KN Main Winch Max Pull 68KN Pulling Speed 28m/min Rope Diameter 16mm Rope Length 30m Wireline Winch Max Pull 11KN(bare drum) Pulling Speed 120m/min Rope Diameter 6.6mm Rope Length 1,000m Mast Length 10m Drilling Angle 45°-90° Dump Length 1.1m Foot Clamp Drill Rod BS, NS, HS, PS Travelling Capacity Max.Permissible Gradient 30° Max.Travelling Speed 2km/h Transporting Dimensions L×W×H 5,100×2,350×2,600mm Total Weight: 8.5t Diamond Coring Drill Rig Location: China Learn More

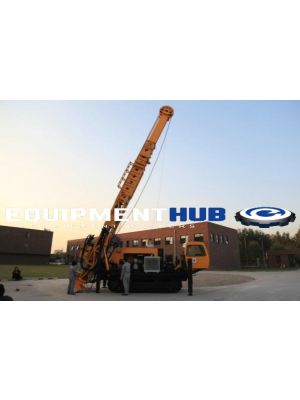

Make: Cortech Model: CSD3000 CSD3000 core drilling rig is specially designed for diamond core drilling. It provides precise control on the drilling capacity. The drill head is designed to slide and dump, together with the full angle rotation structure for drill mast, it effectively reduces manual inputs and improves efficiency. The hydraulic legs are stretchable, which broaden the bearing surface, and ensure outstanding reliability. Its full hydraulic concept includes virtually all operational functions that prevail on the latest models around the world. • 9 meters rod pulling largely improves drilling efficiency due to rod collection frame design on mast • The design of side shift by hydraulic of rotation head largely reduces working tensions and guarantees personnel safety • Multi-pressure gauge reads real time pressures for kinds of major components • High/low speed control of main winch largely meets speed requirements for rods handling • Stepless control of mud pump flow facilitates various drilling needs for mud • telescopic mast greatly reduces working tensions and improves drilling efficiency. • Horizontal extension of jack legs guarantees firm rig standing on the ground. • Its full hydraulic concept includes virtually all operational functions that prevail on the latest models around the world. • Independent tramming cab set in front provides full view for easy rig walking and driver’s safety • Mast dumping guarantees perfect stability during drilling; • Independent hydraulic jacks facilities leveling of the rig; • Great convenience of control of feed pressure; • Standardized parts and components make maintenance and repairing easy; • Real time reading of drilling data on gauges on the control panel; • Mud pump and mixer powered by the rig’s hydraulic system, controlled directly on the rig’s panel; • Top grade hydraulics of European origin; • Experienced engineers plus adequate spare parts ready to provide full service. Specifications: Drilling Capacity Dia of Drill Rod BS,NS,HS,PS Drilling Depth 3,000m 2,300m 1,600m 1,050m Hydraulic System Pressure 28MPa Cooling Air Cooled Power System Model Cummins 6LTAA8.9-C325 Type Turbo Charged Power 239KW Engine RPM 2,200rpm Drill Head Max Torque 8,170Nm Max Rotation ,RPM 1,250rpm Feed Stroke 3,450mm Max Inside Diameter 117mm Max Pull /Max Push 250KN/110KN Main Winch Max Pull 181.44KN Pulling Speed Low:33m/min High:70m/min Rope Diameter 24mm Rope Length 41m Wireline Winch Max Pull 18KN(bare drum) Pulling Speed 150m/min(bare drum) Rope Diameter 6.6mm Rope Length 2,500m Mast Length 11.2-13.7m Drilling Angle 45°-90° Dump Length 1.4m Foot Clamp Drill Rod BS, NS, HS, PS Travelling Capacity Max.Permissible Gradient 30° Max.Travelling Speed 2km/h Transporting Dimensions L×W×H 11,240×2,310×3,330mm Total Weight 23.5t Diamond Coring Drill Rig Location: China Learn More

Atlas Copco XAS1600 CD6 Air Compressor Model: XAS1600 SN: APP293850 KW: 318 RPM: 1650 Learn More

Make: Lin Jin Hydraulics Model: 10t, 15t, 20t, 25t & 35t Year: 2022 Rubber & Steel Track Bases Sizes; - 10 Tonne - 15 Tonne - 20 Tonne - 25 Tonne - 35 Tonne Prices; 10 Tonne: $18,500 ex GST each 15 Tonne: $20,500 ex GST each 20 Tonne - 25 Tonne: $26,500 ex GST each 35 Tonne: $30,500 ex GST each *Brand New* Hydraulic Drive Location: China Learn More

Make: EWS Model: 446 Hours: 1,400 Engine: Detroit 8V92 @ 560 HP - Gas Spec - Air Operated Remotes - Set up on Standard Container Base Skid Mounted Mud Pump Location: Victoria, Australia Learn More

Make: FMC Model: L1622HV Triplex Bean Mud Pump Location: Queensland, Australia Learn More
